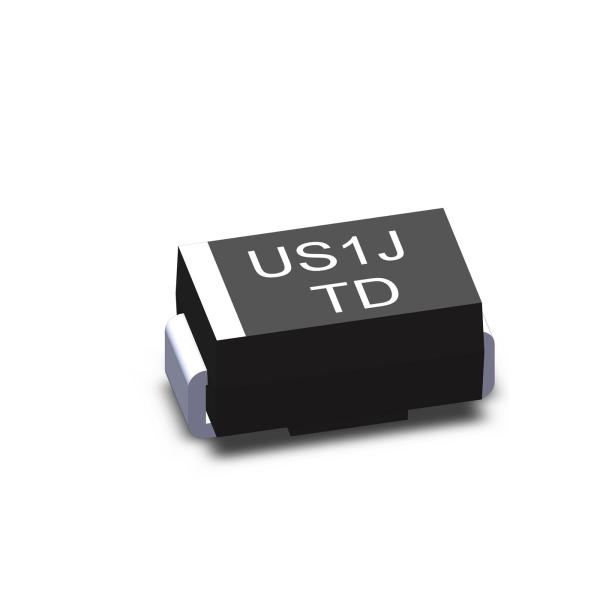

Us1j Diode Ultra Fast Recovery Rectifier Diode 600v 1A Powerful

Name: Us1j Diode Ultra Fast Recovery Rectifier Diode 600v 1A Powerful
Brand: trusTec
Price: 1 USD

Buy cheap Us1j Diode Ultra Fast Recovery Rectifier Diode 600v 1A Powerful product

Brand Name : trusTec

Model Number : US1J

Certification : ROHS

Place of Origin : China

MOQ : 7.5K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 7.5K PCS per tape&reel, 120K PCS per carton.

Operating temperature : -55°C ~ 150°C

Material : Silicon

Trr : 75ns

Package : SMA

Max. reverse voltage : 600V

Max. forward current : 1A

Max. forward voltage : 1.7V

Max. reverse current : 5uA

Contact Now

Low Leakage US1J 1A 600V SMA SMD Ultra Fast Recovery Silicon Rectifier Diode GPP Chip

Product Drawing

Us1j Diode Ultra Fast Recovery Rectifier Diode 600v 1A Powerful

Technical Parameters

Type	VRRM V	IAV A	IFSM A	VF V	IR μA	Trr ns
US1A	50	1	30	1	5	50
US1B	100	1	30	1	5	50
US1D	200	1	30	1	5	50
US1G	400	1	30	1.4	5	50
US1J	600	1	30	1.7	5	75
US1K	800	1	30	1.7	5	75
US1M	1000	1	30	1.7	5	75

Product Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

For surface mounted applications

Ultra fast switching for high efficiency

Low reverse leakage

Built-in strain relief,ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed 250℃/10 seconds at terminals

Mechanical Data

Case: JEDEC DO-214AC molded plastic body

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.002 ounce, 0.07 grams

Us1j Diode Ultra Fast Recovery Rectifier Diode 600v 1A Powerful

Product Tags:

us1j smd diode

surface mount ultrafast power rectifiers

Us1j Diode
