SMD Fast Recovery Rectifier Diode RS1MF ultrathin SMAF Package Flat Lead
RS1AF THRU RS1MF
SURFACE MOUNT FAST RECOVERY RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere
Product Datasheet
| Type | Current | Package |
| F1 THRU F7 | 1 | SOD-123FL |
| R1A THRU R1M | 1 | SOD-123FL |
| SOD1F1 THRU SOD1F7 | 1 | SOD-123FL |
| FR1A THRU FR1M | 1 | SMA |
| RS1A THRU RS1M | 1 | SMA |
| RS1AF THRU RS1MF | 1 | SMAF |
Mechanical Characteristics
Case: JEDEC SMAF molded plastic body over passivated chip
Terminals: Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.0014 ounce, 0.038 grams
Features
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Fast switching for high efficiency
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds at terminals
Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| | SYMBOLS | RS1AF | RS1BF | RS1DF | RS1GF | RS1JF | RS1KF | RS1MF | UNITS |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | VOLTS |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | VOLTS |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | VOLTS |
Maximum average forward rectified current at TL=75 C | I(AV) | 1 | Amps |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 30 | Amps |
| Maximum instantaneous forward voltage at 1.0A | VF | 1.3 | VOLTS |
| Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃ | IR | 5.0 50.0 | µA |
| Maximum reverse recovery time (NOTE 1) | trr | 150 | 250 | 500 | ns |
| Typical junction capacitance (NOTE 2) | CJ | 15.0 | pF |
| Typical thermal resistance (NOTE 23) | RθJA | 95.0 | ℃/W |
| Operating junction and storage temperature range | TJ,TSTG | -65 to +150 | ℃ |
Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

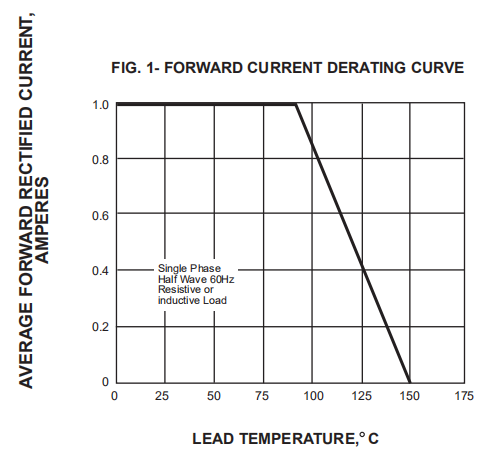

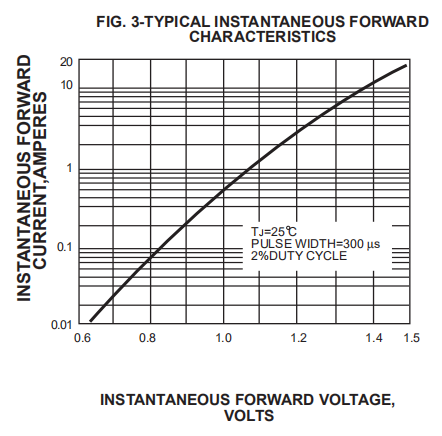

Characteristic Curves
