3A 40V SS34 SS36 SS310 SMD Schottky Barrier Rectifier Diode SMC DO 214AB Package

Name: 3A 40V SS34 SS36 SS310 SMD Schottky Barrier Rectifier Diode SMC DO 214AB Package
Brand: trusTec
Price: 1 USD

Buy cheap 3A 40V SS34 SS36 SS310 SMD Schottky Barrier Rectifier Diode SMC DO 214AB Package product

Brand Name : trusTec

Model Number : SS34

Certification : ROHS

Place of Origin : China

MOQ : 3K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 3K PCS per tape&reel, 48K PCS per carton.

Type : Schottky Diode

Package type : Surface Mount

Max. reverse voltage : 40V

Max. forward voltage : 0.55V

Max. forward current : 3A

Max. reverse current : 0.5mA

Package : SMC

Packing : Tape&Reel

Contact Now

SS34 SS36 SS310 3A SMD Schottky Barrier Rectifier Diode SMC DO-214AB Package Lead Free

S32 THRU SS320

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts

Forward Current - 3.0 Ampere

Package Outline Dimensions(unit:mm)

3A 40V SS34 SS36 SS310 SMD Schottky Barrier Rectifier Diode SMC DO 214AB Package

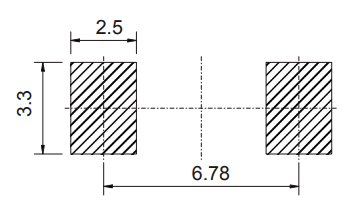

Mounting Pad Layout(unit:mm)

Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

For surface mounted applications

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

Built-in strain relief,ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed: 250 ℃/10 seconds at terminals

Mechanical Data

Case: JEDEC DO-214AB molded plastic body

Terminals: leads solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.007 ounce, 0.25 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

	SYMBOLS	SS32	SS33	SS34	SS35	SS36	SS38	SS310	SS315	SS320	UNITS
Reverse Voltage	VRRM	20	30	40	50	60	80	100	150	200	VOLTS
Forward Current	IAV	3									Amp
Surge Current	IFSM	100									Amps
Forward Voltage	VF	0.55			0.70		0.85			0.95	Volts
Reverse Current	IR	0.5							1		mA
Operating Temperature	TJ	-65 to +125					-65 to +150				℃
Storage Temperature	TSTG	-65 to +150

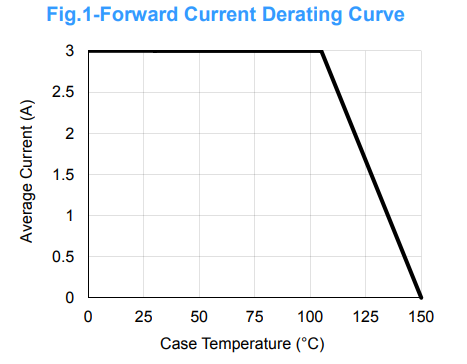

Ratings and Characteristic Curves
